Line Search Methods

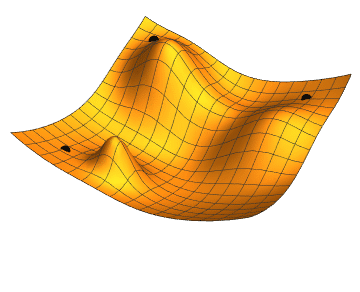

One of the simplest local optimisation algoriths is gradient descent. It is initialised at some point in parameter space $a_0$, and at each iteration the function $f(x)$ is reduced by following the direction of steepest descent $-\nabla f(a)$

This is an example of an important class of algorithms called the line search methods. These algorithms choose a search direction $p_k$ at each iteration $k$, and search along the 1D line from the initial point $a_k$ to a new point

with a lower function value. The problem at each iteration becomes a one-dimensional optimisation problem along $p_k$ to find the optimal value of $\alpha$. Each line search algorithm is thus defined on how it chooses both the search direction $p_k$ and the optimal $\alpha$.

An obvious downside to simple gradient descent can be seen for functions which have regions of zero or small gradients, or plateaus. Here a gradient descent algorithm with a constant $\gamma$ will proceed very slowly, if at all. This motivates another important line search algorithm, Newtons method.

The Newtons direction $p^N_k$ can be derived by considering the second-order Taylor expansion of the function $f(x)$

We find the value of $p$ that minimises $m_k(p)$ by setting the derivative of $m_k$ to zero, leading to

Unlike the steepest descent, Newtons method has a natural step length $\alpha \approx 1$, which is suitable for a wide variety of problems and can quickly cross areas of low gradient. Naturally, since the algorithm is based on a second-order approximation of the function $f$, it works better if this approximation is reasonably accurate.

Newtons method can be used as long as the inverse of the second derivative of the function $(\nabla^2 f(a_k))^{-1}$, exists (e.g. it will always exist for a positive definite $\nabla^2 f$). However, even when this inverse does exist it is possible that the direction $p^N_k$ does not satisfy the descent condition $f(a_k + \alpha p^N_k) < f(a_k)$ (or equivilently $\nabla f(a_k)^T p^N < 0$), so many modifications to Newtons methods, falling under a class of methods called Quasi-Newton methods, have been proposed to satisfy this descent condition.

Quasi-Newton methods do not require the (often onerous) calculation of the hession $\nabla^2 f(x)$ like Newtons, instead they form an approximation to the hessian $B_k \approx \nabla^2 f(a_k)$ that is updated at each step using the information given by the gradient evaluations $\nabla f(a_k)$. Two popular methods of performing this update are the symmetric-rank-one (SR1), and the Broyden, Fletcher, Goldfarb, and Shanno, (BFGS) formula. Once the approximation $B_k$ is formed then the search direction is calculated via

For more details of other line search methods, please see Chapter 3 of the Nocedal and Wright textbook, or in the other textbooks listed at the end of this lesson. Finally, it should be noted that the conjugate gradient method can also be used for non-linear optimisation, where the search direction is given by

In line search methods, choosing the step length $\alpha_k$ is a non-trivial task. Ideally we would want to chose $\alpha_k$ to minimise the function along the one-dimensional search direction $p_k$. That is, we wish to minimise

In general it is too expensive to do this minimisation exactly, so approximate methods are used so that multiple trial $\alpha_k$ values are trialled, stopping when a candidate is found that satisfies a set of conditions. There are two main conditions used, the Wolfe conditions and the Goldstein conditions.

The two Wolfe conditions are the sufficient decrease condition, which ensures that the reduction in the function value is proportional to the step length $\alpha_k$ and the gradient in the direction of the step

The second Wolfe condition is the curvature condition, which prevents unacceptibly short steps by ensuring that the slope of $\phi$ is greater than some constant $c_2$ times the initial slope $\phi'(0)$

where $c_2 \in (c_1, 1)$. Typical values are $c_1 = 10^{-4}$ and $c_2 = 0.9$. The strong Wolfe conditions restrict the gradient $\phi'$ to be small, so as to exclude points that are too far from stationary points of $\phi$

The Goldstein conditions are similar in spirit to the Wolfe conditions, and are formed from the two inequalities

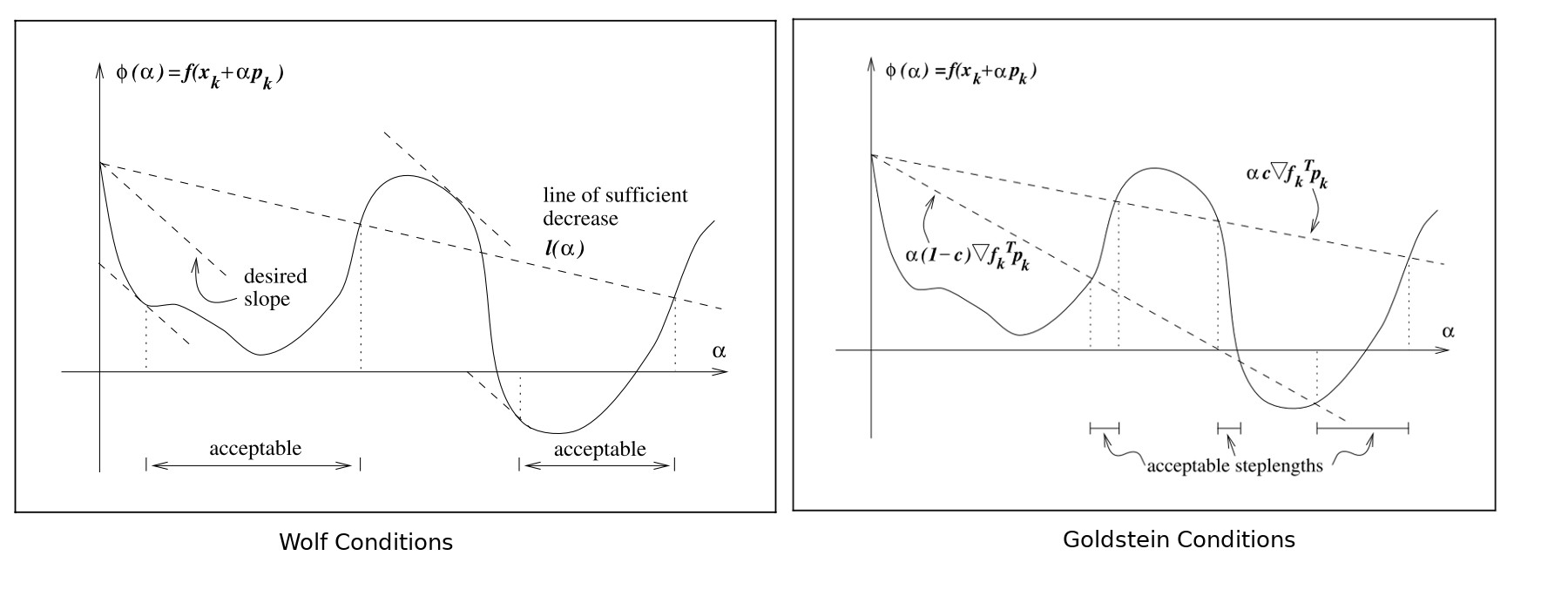

with $0 < c < 1/2$. The first inequality prevents small step sizes while the second is the same sufficient decrease condition as in the Wolfe conditions. The Goldstein conditions are often used in Newton-type methods but for quasi-Newton methods the Wolfe conditions are prefered. The diagrams from the text by Nocedal and Wright illustrate the two conditions

Algorithms for choosing candidate step size values $\alpha_k$ can be complicated, so we will only mention here one of the simplest, which is the backtracking method. This approach implicitly satisfies the condition on too small $\alpha_k$, and only repeatedly test for the common sufficient decrease condition that appears in both the Wolfe and Goldstein condtitions.

Choose $\bar{\alpha} > 0$, $\rho \in (0, 1)$, $c \in (0, 1)$

$\alpha_k := \bar{\alpha}$

repeat until $f(a_k + \alpha_k p_k) \le f(a_k) + c \alpha_k \nabla f(a_k)^T p_k$

end repeat.
